Engine Oil Schematics

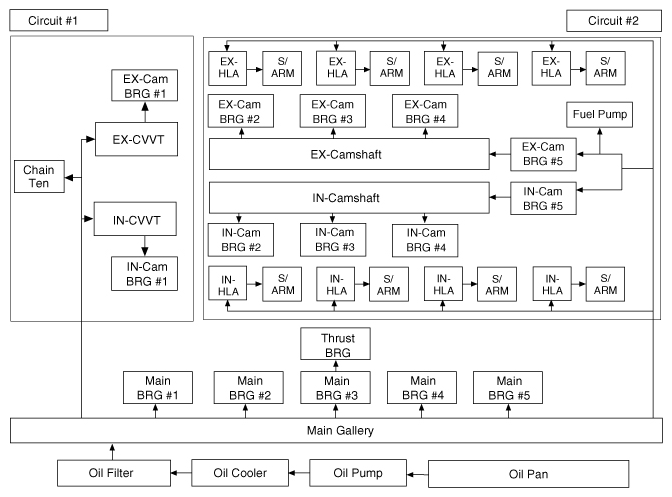

Engine Oil Schematics
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
