Repair Procedures: Removal

  1. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  2. Drain engine oil.

    (Refer to Lubrication System - "ENGINE OIL ")

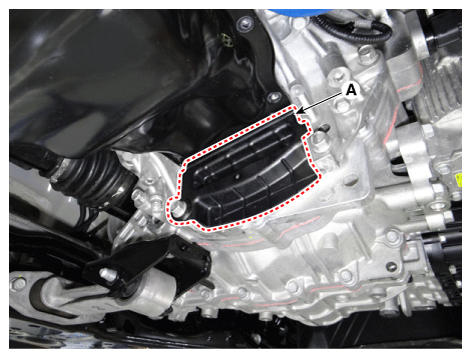

  3. Remove the service cover (A).
    G12353029Courtesy of KIA MOTORS AMERICA, INC.

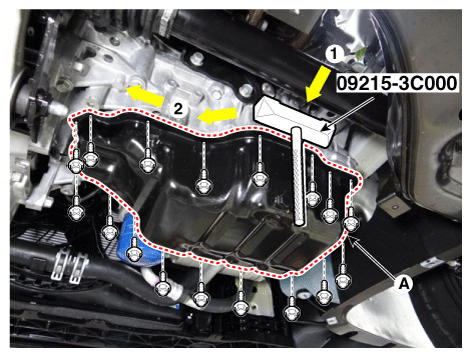

  4. Remove the oil pan (A).
    1. Unfasten the bolts.
    2. Insert the blade of SST (09215-3C000) between the lower crankcase and the oil pan. Separate the applied sealer and remove the oil pan.
    G12353030Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Loosen one oil pan bolt near each corner of the oil pan leaving the bolts held in by about 2 threads.
    Then remove all other pan bolts.
    NOTE:
    • Insert the SST between the oil pan and the lower crankcase by tapping it with a plastic hammer in the direction of arrow.
    • After tapping the SST with a plastic hammer along the direction of arrow around more than 2/3 edge of the oil pan, remove it from the lower crankcase.
    • Do not turn over the SST abruptly without tapping as it may damage the SST.
    • Be careful not to damage the contacting surfaces of the lower crankcase and the oil pan.

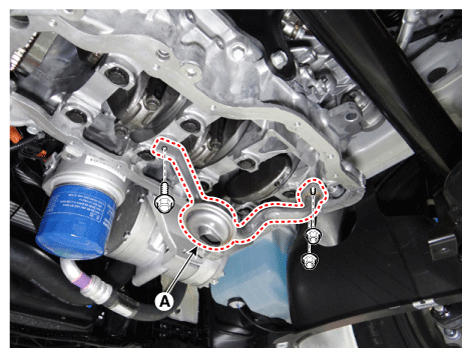

  5. Remove the oil screen (A) with the gasket.
G12353031Courtesy of KIA MOTORS AMERICA, INC.
