Repair Procedures: Installation

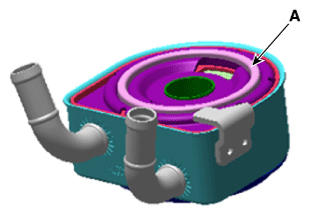

Apply engine oil to the oil cooler packing surface (A).

Courtesy of KIA MOTORS AMERICA, INC.

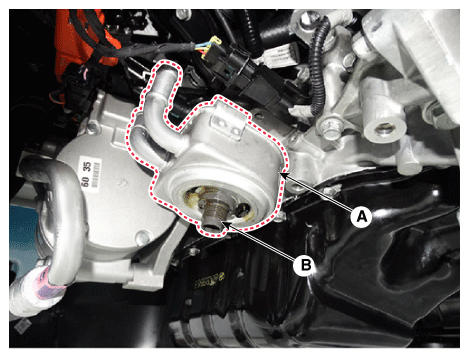

Install the oil cooler (A) with a fixing bolt (B).
Tightening Torque:

44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Fix position of oil cooler stopper where oil cooler resists on ladder frame stopper.

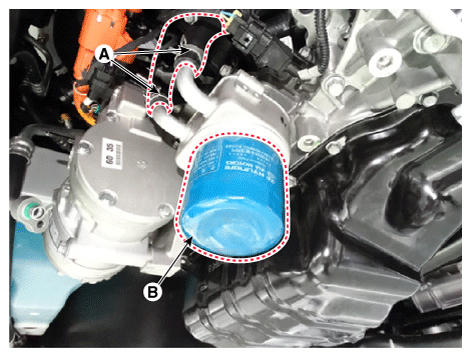

Apply engine oil to the oil filter packing surface and install the oil filer (B).
Tightening Torque:

11.8 - 15.7 N.m (1.2 - 1.6 kgf.m, 8.7 - 11.6 lb.ft)
Connect the oil cooler hose (A)

Courtesy of KIA MOTORS AMERICA, INC.
Fill the engine coolant.
(Refer to Cooling System - "COOLANT ")
Start the engine and check for leaks.
