Repair Procedures: Removal

  1. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

  2. Remove the low pitch horn (A) and high pitch horn (B) after disconnecting the horn connector (C) and loosening the mounting the nut.

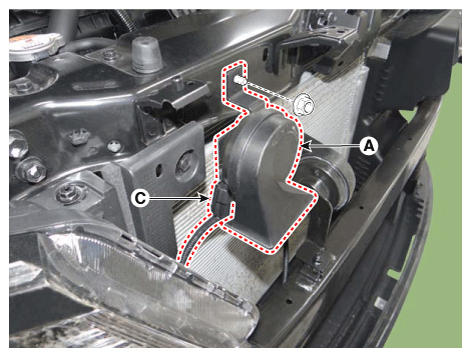

G12351373Courtesy of KIA MOTORS AMERICA, INC.

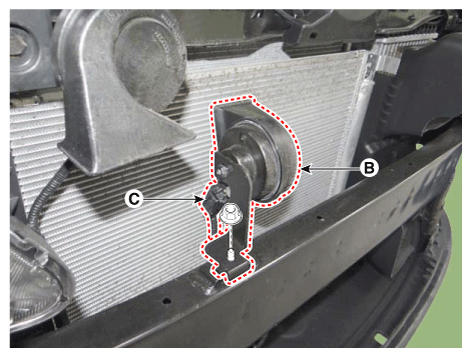

G12351374Courtesy of KIA MOTORS AMERICA, INC.
