Wireless Power Charging Unit
>>
Components And Positions
>>
Components
Components And Positions: Components

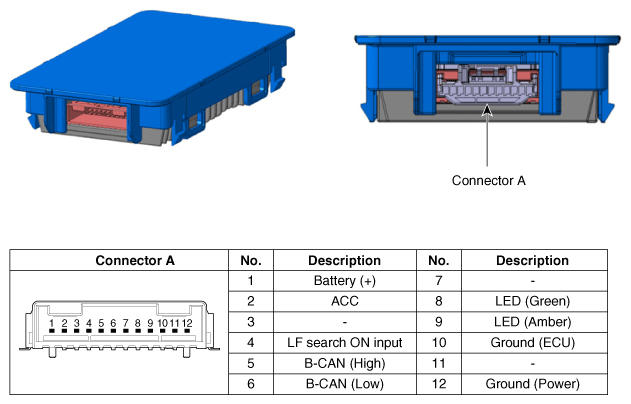

Fig 1: Wireless Power Charging Unit With Connector End View & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
