[Rear Power Window Module (RDM, IMS)]

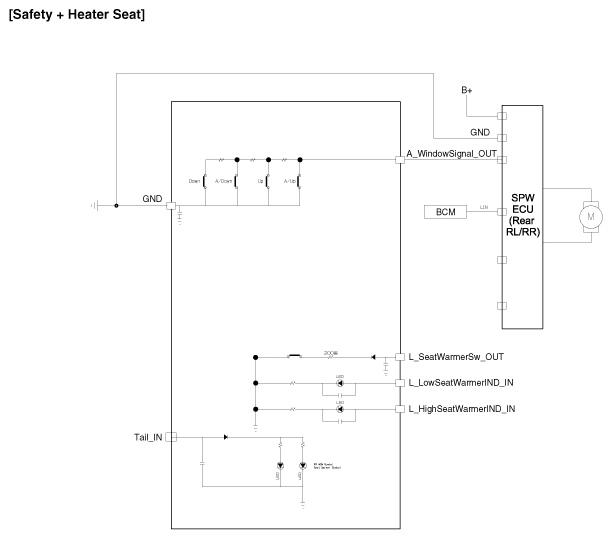

G12351758

Courtesy of KIA MOTORS AMERICA, INC.

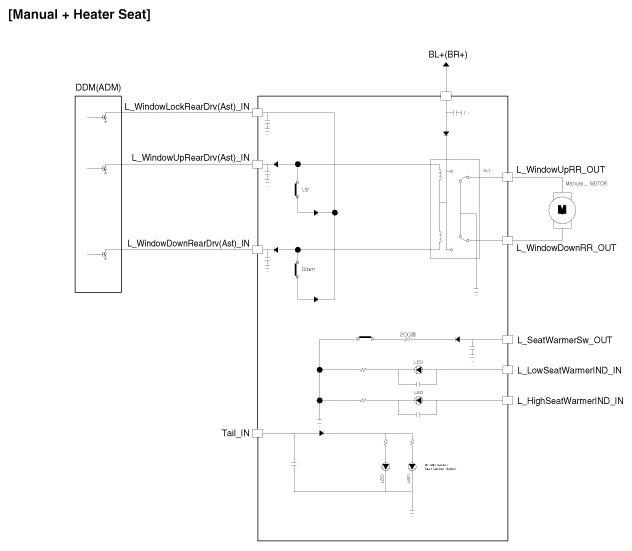

G12351759

Courtesy of KIA MOTORS AMERICA, INC.

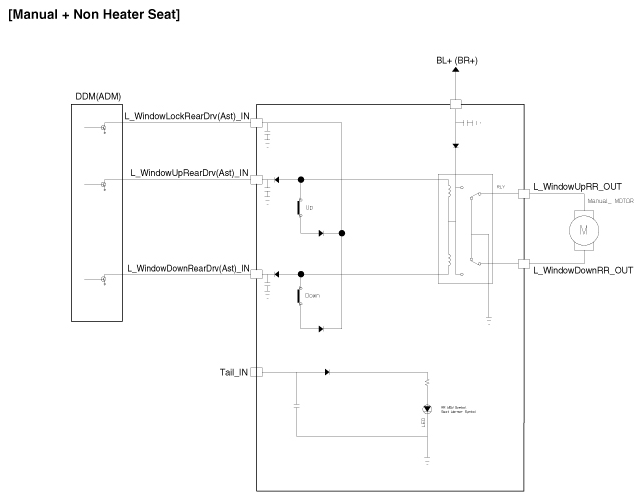

G12351760

Courtesy of KIA MOTORS AMERICA, INC.

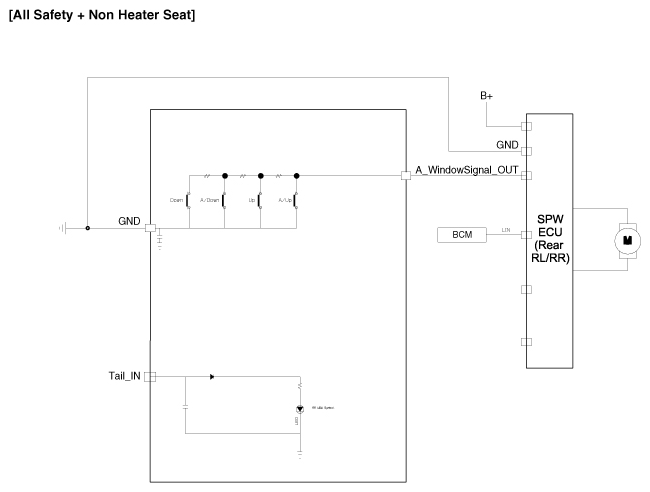

G12351761

Courtesy of KIA MOTORS AMERICA, INC.
