[Assist Power Window Switch (Non-IMS)]

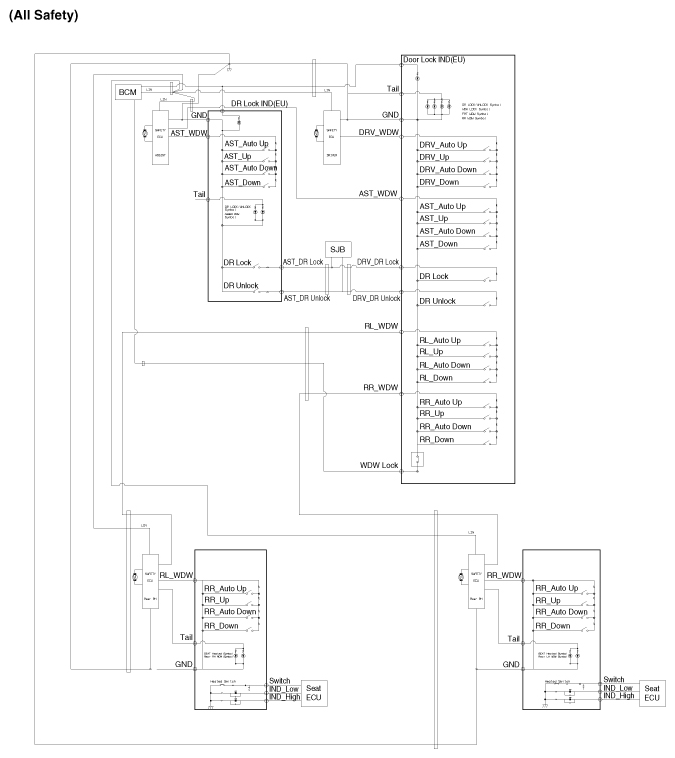

G12351753Courtesy of KIA MOTORS AMERICA, INC.

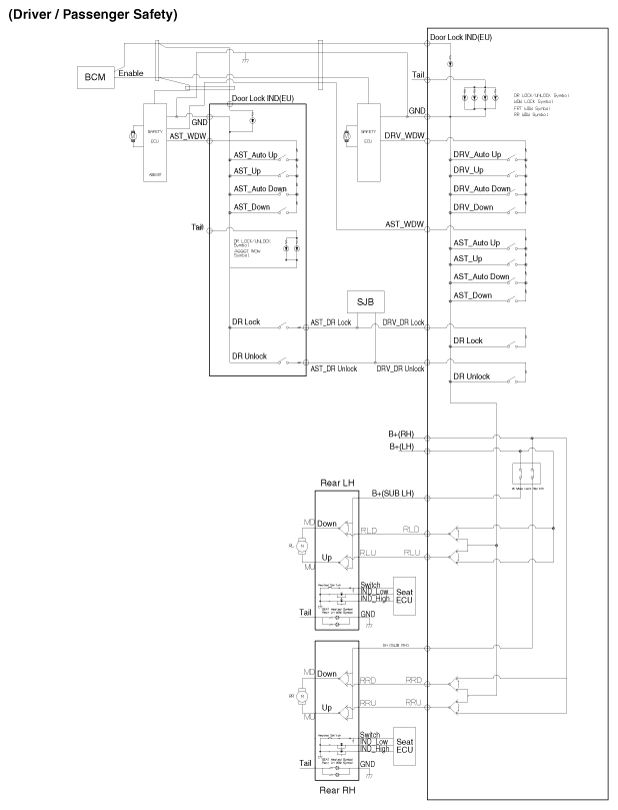

G12351754Courtesy of KIA MOTORS AMERICA, INC.

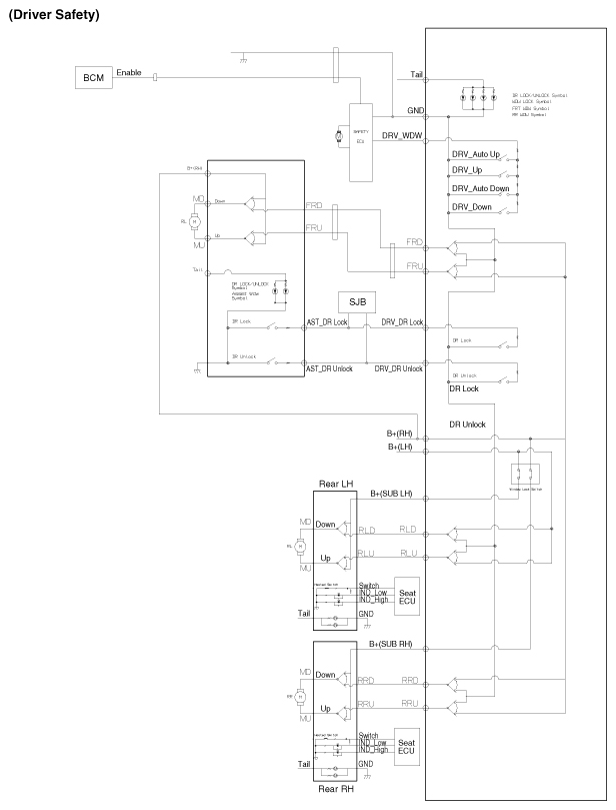

G12351755Courtesy of KIA MOTORS AMERICA, INC.
G12351756Courtesy of KIA MOTORS AMERICA, INC.
G12351757Courtesy of KIA MOTORS AMERICA, INC.
