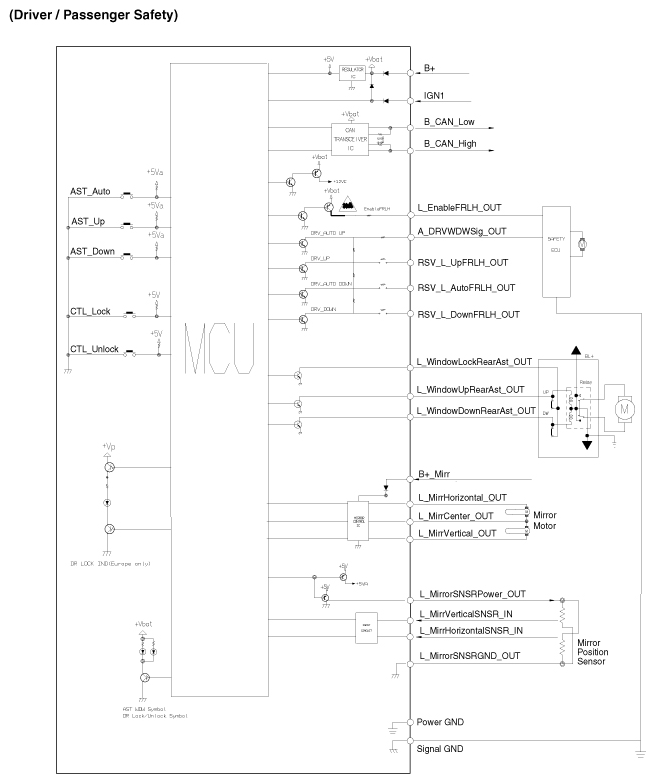

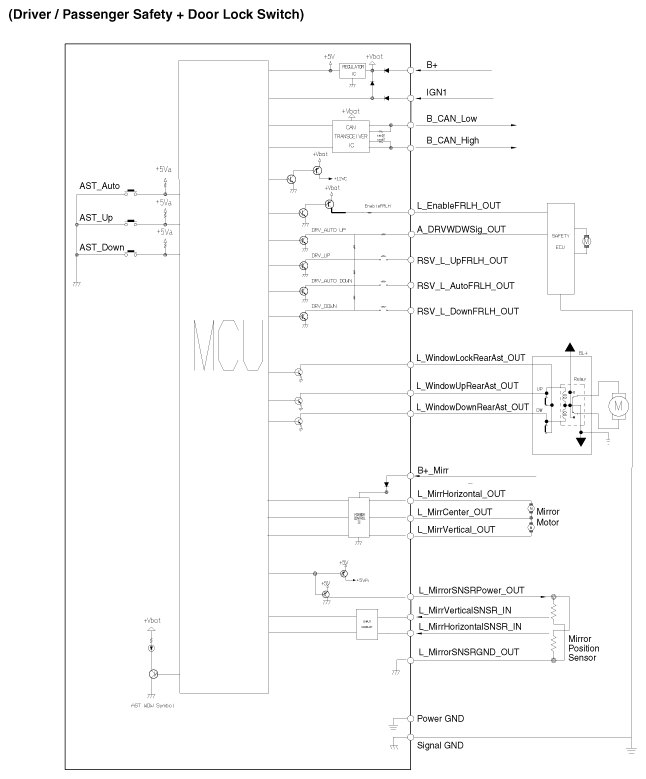

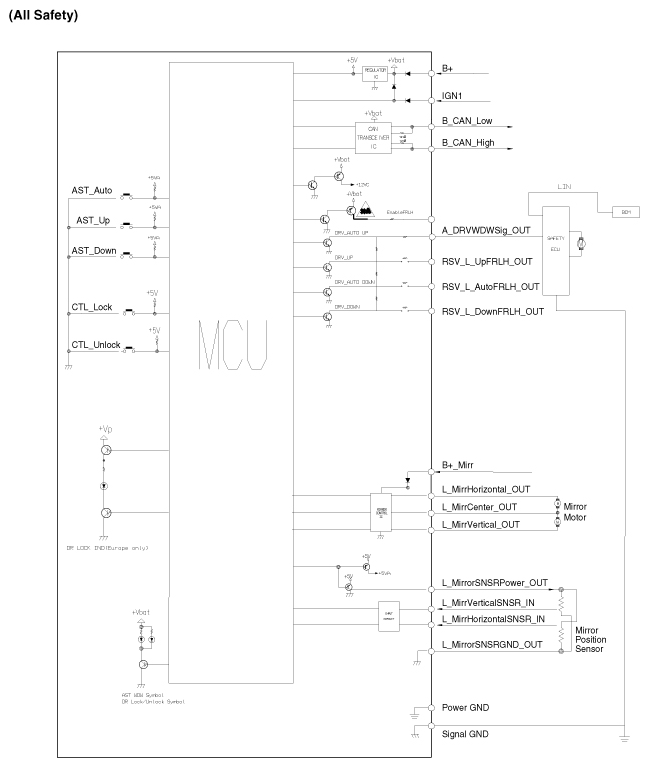

Home >> Kia >> 2017 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows (PHEV) >> Power Window Switch >> Schematic Diagrams >> Circuit Diagram >> Assist Power Window Switch >> [Assist Power Window Module (ADM, IMS)]
