Driver/Passenger Power Window Switch

CAUTION:

Be careful not to scratch the door trim and other parts.
Take caution when keeping and handling during disassembly/assembly as it is easily contaminated by lubricant and oil.

Disconnect the negative (-) battery terminal.
Remove the front door trim.
(Refer to Body - "FRONT DOOR TRIM ")
Loosen the power window switch assembly mounting screws.

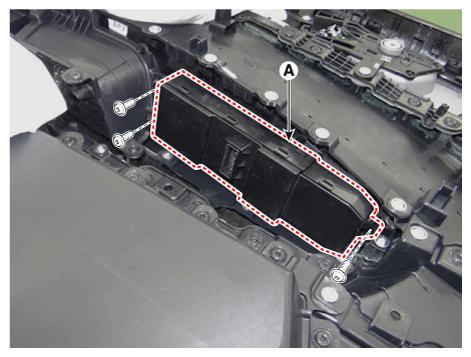

Remove the power window switch assembly (A) after disengaging the mounting clips.

G12351772

Courtesy of KIA MOTORS AMERICA, INC.

Information

Replace any damaged clips.

G12351773

Courtesy of KIA MOTORS AMERICA, INC.
