Central Door Lock/Unlock

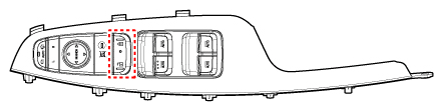

G12351767Courtesy of KIA MOTORS AMERICA, INC.
  1. Relevant signal is sent to the BCM by the driver seat power window door lock/unlock switches.

The BCM will lock or unlock the door based on the received switch signals.
