Repair Procedures: Disassembly

[Housing Cover]

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Remove outside rear view mirror assembly.
(Refer to Body - "OUTSIDE VIEW MIRROR ")

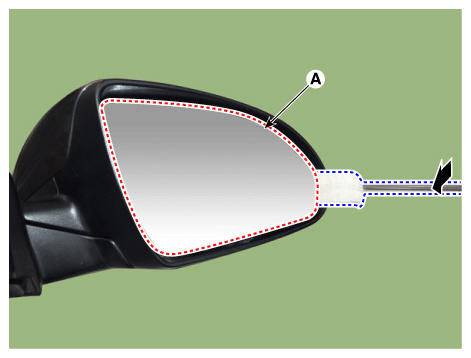

After inserting the flat-bladed screwdriver as shown in the illustration below, remove the mirror (A) by applying a momentary force.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Wrap the tool with protective tape or cloth to prevent damage to the parts.
- Do not insert the tool too deeply.

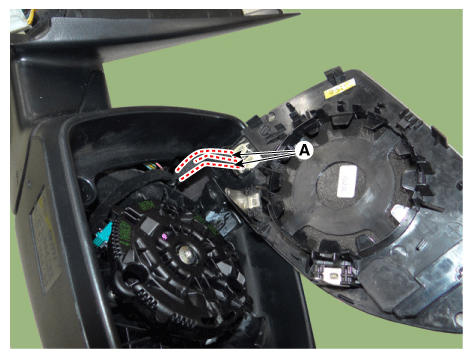

Disconnect the heater connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

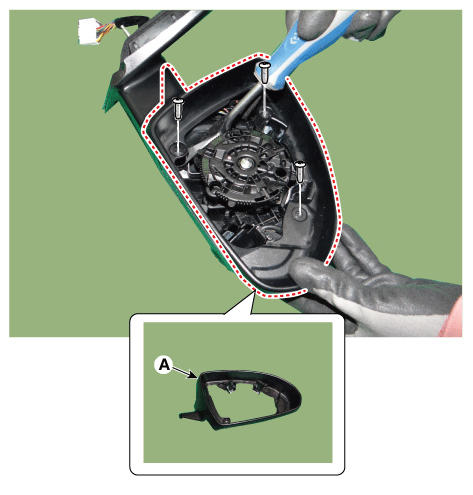

Remove the housing cover mounting screw.
Using a remover and remove the housing cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Reassemble in the reverse order of disassembly.
