Repair procedures: Replacement
CAUTION:
- Put on gloves to protect your hands.
NOTE:
- When prying with a flat-tip screwdriver or using a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Be careful not to bend or scratch the trim and panels.
- Remove the rear seat cushion assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the rear seat back assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the rear package tray trim.
(Refer to Interior Trim - "PACKAGE TRAY TRIM ")

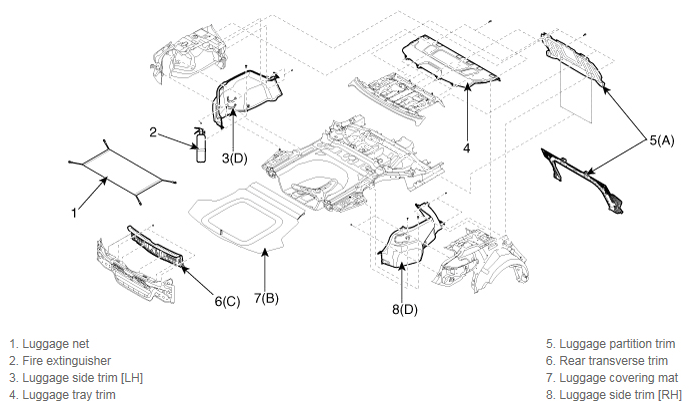

- After loosening the mounting bolts, remove the luggage partition assembly (A).
- Remove the luggage covering mat (B).
- Remove the rear transverse trim (C).
- Remove the luggage partition side trim (D).
- After loosening the mounting screws, remove the luggage side trim (E).
- Install in the reverse order of removal.
Information
- Replace any damage clips.
[General type]
