Trunk Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear transverse trim.

    (Refer to Body - "TRUNK TRIM ")

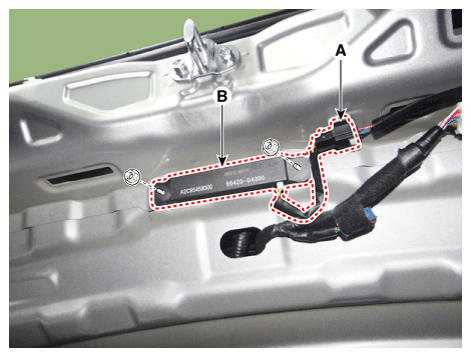

  3. Remove the trunk antenna (B) after disconnect the connector (A) and loosening the mounting nuts.
G12351893Courtesy of KIA MOTORS AMERICA, INC.
