Door Outside Handle

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door outside handle.

(Refer to Body - "FRONT DOOR OUTSIDE HANDLE ")

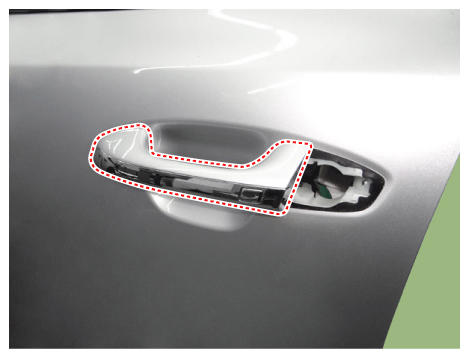

G12351896Courtesy of KIA MOTORS AMERICA, INC.

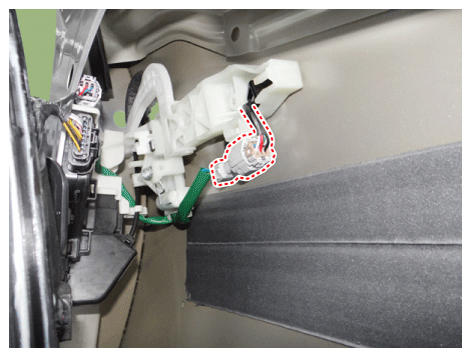

G12351897Courtesy of KIA MOTORS AMERICA, INC.
