Door Outside Handle

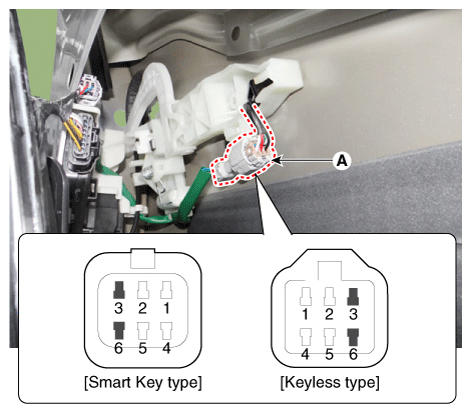

  1. Disconnect the front door outside handle connector (A).
    G12351902Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between terminals No. 3 and No. 6.
G12351903Courtesy of KIA MOTORS AMERICA, INC.
No Description
1 Door antenna (+)
2 Pocket lamp LED (+)
3 Door lock/unlock button switch
4 Door antenna (-)
5 Pocket lamp LED (-)
6 Door lock/unlock button switch ground
G12351904Courtesy of KIA MOTORS AMERICA, INC.
