Antenna Status Check

  1. Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".

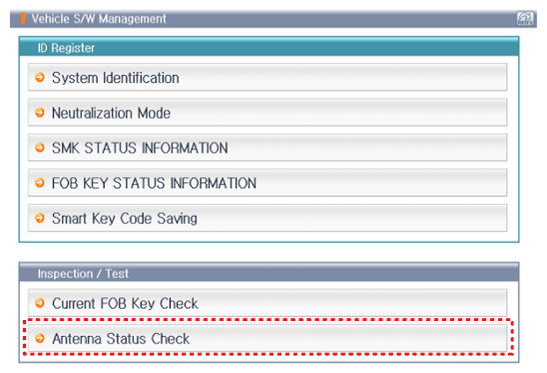

    G12351910Courtesy of KIA MOTORS AMERICA, INC.
  3. After ignition "ON", select the "Antenna Status Check".

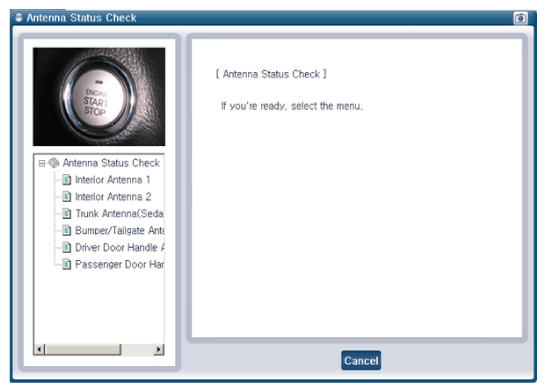

    G12351911Courtesy of KIA MOTORS AMERICA, INC.
  4. Set the smart key near the related antenna and operate it with a KDS/GDS.
    G12351912Courtesy of KIA MOTORS AMERICA, INC.

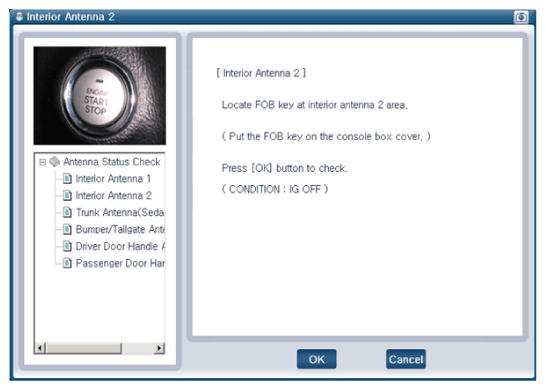

    G12351913Courtesy of KIA MOTORS AMERICA, INC.
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
