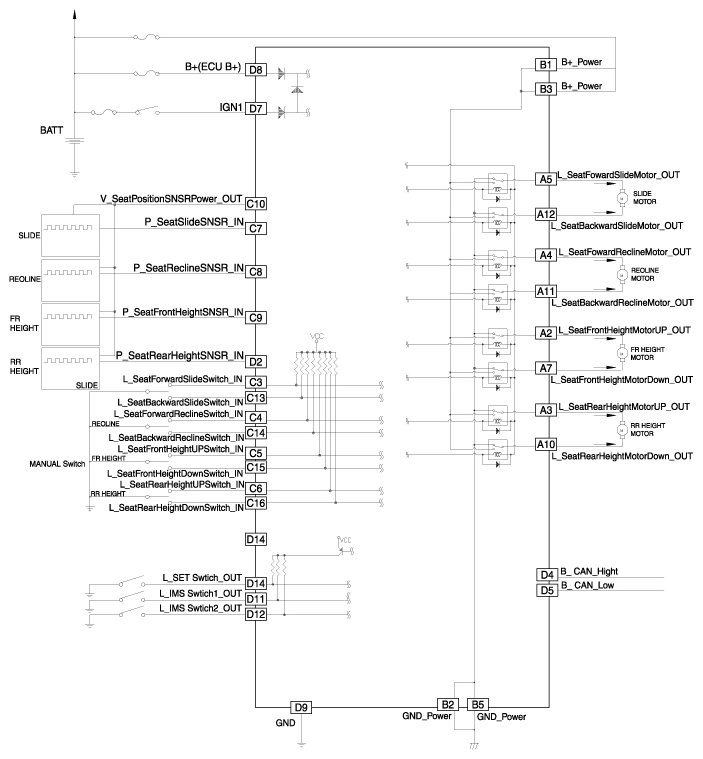

Home >> Kia >> 2017 >> Optima Plug-In Hybrid EX >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Integrated Memory System (IMS) (PHEV) >> Memory Power Seat Unit >> Schematic Diagrams >> Circuit Diagram
