Repair Procedures: Removal

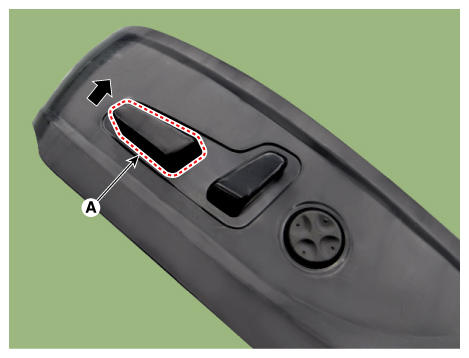

  1. Before removing the driver side seat assembly, adjust to the full upwards position, by pushing the front height adjusting switch (A).
    G12351502Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the negative (-) battery terminal
  3. Remove the driver seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  4. Loosen the IMS unit mounting screws.
    G12351503Courtesy of KIA MOTORS AMERICA, INC.

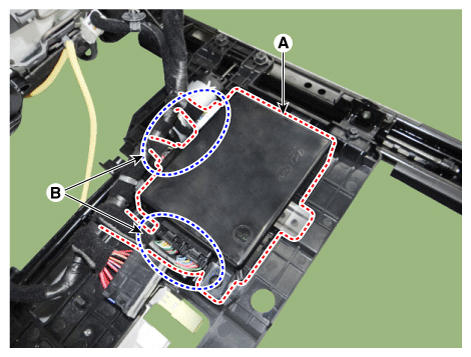

  5. Disconnect the IMS module connectors (B) and then remove the IMS unit (A).
G12351504Courtesy of KIA MOTORS AMERICA, INC.
