Components And Components Location: Components

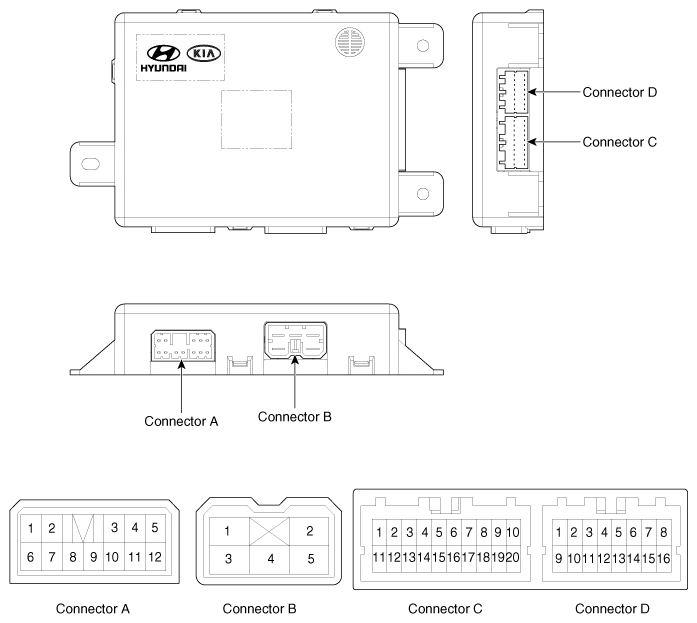

MEMORY POWER SEAT UNIT TERMINAL DESCRIPTION
| No. | Connector A | Connector B | Connector C | Connector D |
|---|---|---|---|---|
| 1 | - | BATT (+) | - | - |
| 2 | Front tilt motor (Up) | GND | - | Seat rear height sensor |
| 3 | Rear height motor (Up) | BATT (+) | Slide switch signal (Forward) | - |
| 4 | Reclining motor (Forward) | - | Reclining switch signal (Forward) | Body CAN (High) |
| 5 | Slide motor (Forward) | GND | Front tilt switch signal (Up) | Body CAN (Low) |
| 6 | - | Rear height switch signal (Up) | - | |
| 7 | Front tilt motor (Down) | Slide sensor | IGN1 | |
| 8 | - | Reclining sensor | BATT (+) | |
| 9 | - | Front tilt sensor | GND | |
| 10 | Rear height motor (Down) | Seat position sensor power | - | |
| 11 | Reclining motor (Backward) | - | IMS Switch 1 | |
| 12 | Slide motor (Backward) | - | IMS Switch 2 | |
| 13 | Slide switch signal (Backward) | - | ||
| 14 | Reclining switch signal (Backward) | SET Switch | ||
| 15 | Front tilt switch signal (Down) | - | ||
| 16 | Rear height switch signal (Down) | - | ||
| 17 | - | |||
| 18 | - | |||
| 19 | - | |||
| 20 | - |
