Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

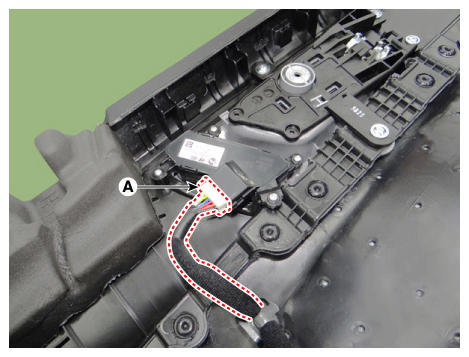

  3. Remove the memory power seat switch connector (A).
    G12351506Courtesy of KIA MOTORS AMERICA, INC.

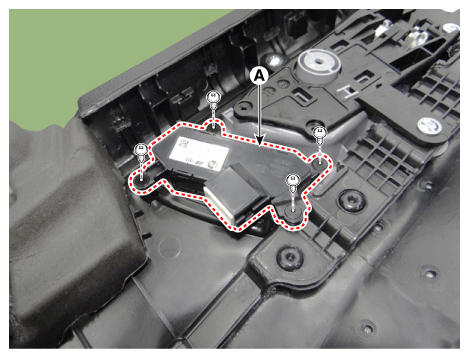

  4. Remove the memory power seat switch (A) after loosening the mounting screws.
G12351507Courtesy of KIA MOTORS AMERICA, INC.
