Components And Components Location: Components

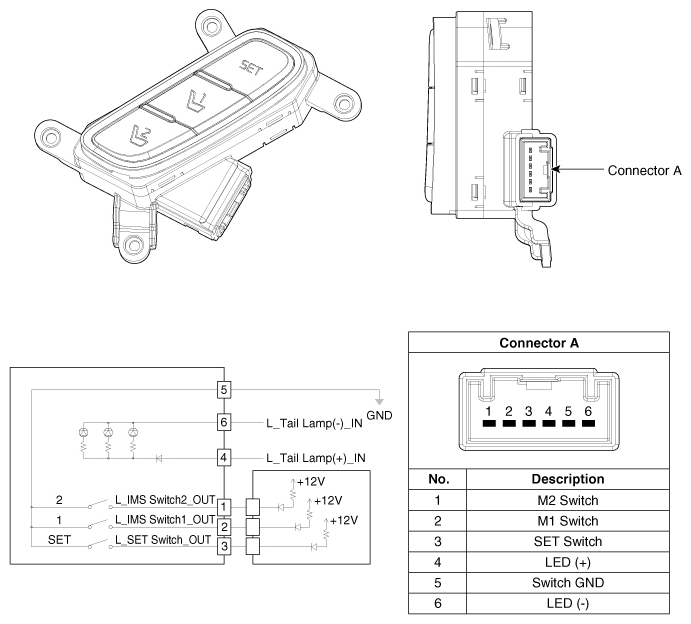

Fig 1: Memory Power Seat Switch With Connector End View & Terminal Description

G12351505

Courtesy of KIA MOTORS AMERICA, INC.
