CAN Signal Inspection
- Ignition "OFF"

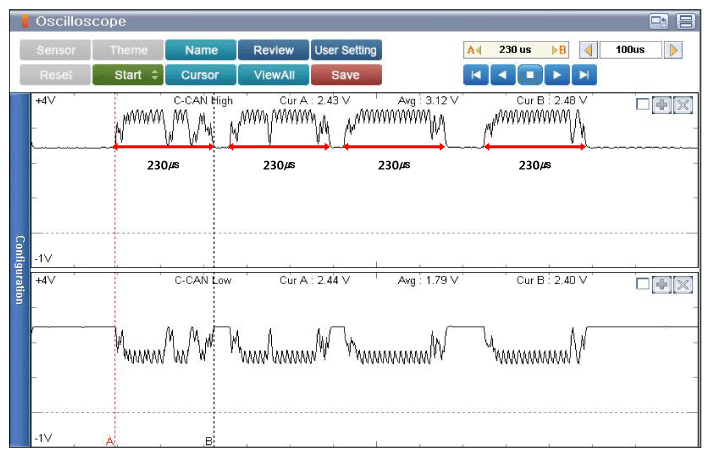

- Connect VMI to KDS/GDS and launch the oscilloscope (2 Channel) :
Channel A (+) : Pin No. 15 (C-CAN High) terminal (IGPM)
Channel A (-) : Ground
Channel B (+) : Pin No. 16 (C-CAN Low) terminal (IGPM)
Channel B (-) : Ground
- Ignition "ON"
- Is the measured value within specification?
YES
- go to "Component Inspection " procedure.
NO
- Repair open or short in C-CAN communication line and then go to "Verification Of REPAIR " procedure.
