Drivers Assistance Systems - ADAS
>>
Blind Spot Detection System (PHEV)
>>
Blind Spot Detection Unit
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

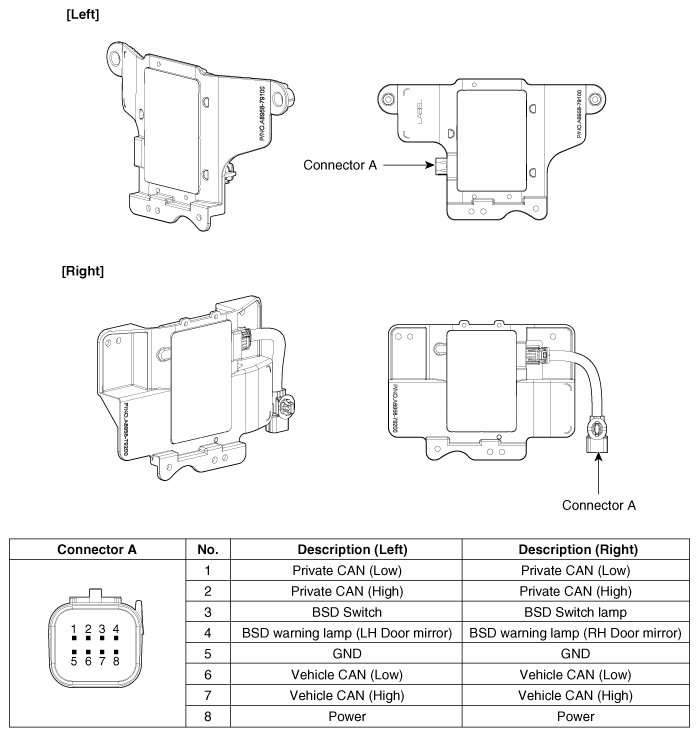

Fig 1: Blind Spot Detection Unit Connector End View And Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
