Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the rear bumper cover.
(Refer to Body - "REAR BUMPER COVER ")

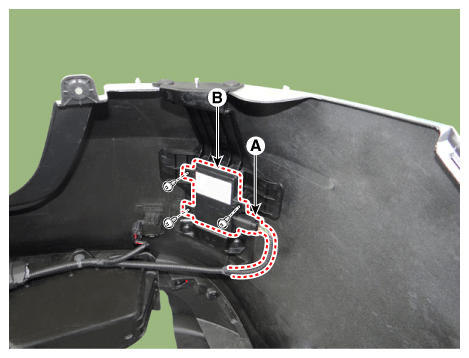

- Disconnect the BSD connector (A) and then remove the BSD unit (B) after loosening the screws.
CAUTION:
Be careful when removing the blind spot detection unit. The bracket may break off from the bumper.
NOTE:
When removing the BSD unit, be careful not to damage the bracket of BSD.
