Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the BSD switch (B) after pressing the locking pin (A).

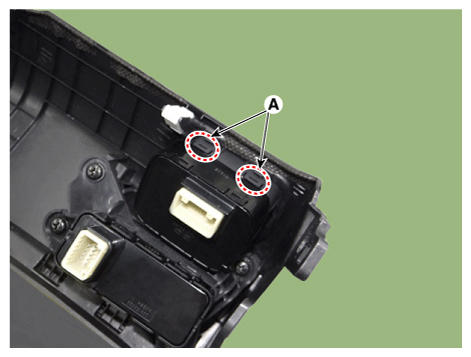

G12351286Courtesy of KIA MOTORS AMERICA, INC.

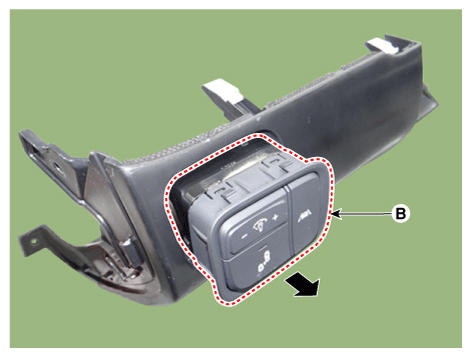

G12351287Courtesy of KIA MOTORS AMERICA, INC.
