Blind Spot Detection Warning Indicator

  1. Disconnect the negative (-) battery terminal.

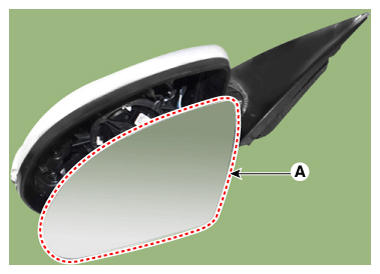

  2. Remove the mirror (A) from the mirror holder.
    G12351291Courtesy of KIA MOTORS AMERICA, INC.

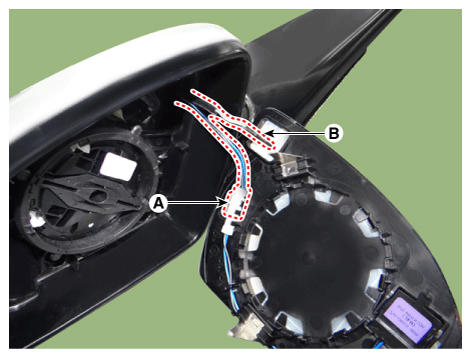

  3. Disconnect the mirror heated connector (B) and BSD indicator connector (A).
    G12351292Courtesy of KIA MOTORS AMERICA, INC.

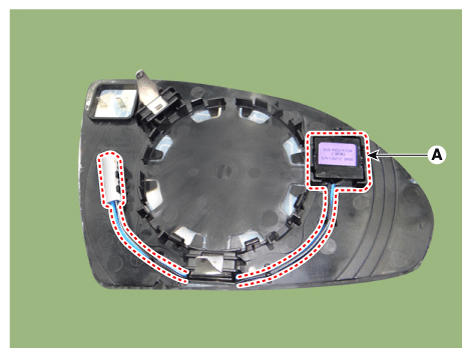

  4. Remove the BSD warning lamp (A).
G12351293Courtesy of KIA MOTORS AMERICA, INC.
