Repair Procedures: Removal

Remove the front bumper.
(Refer to Body - "FRONT BUMPER COVER ")

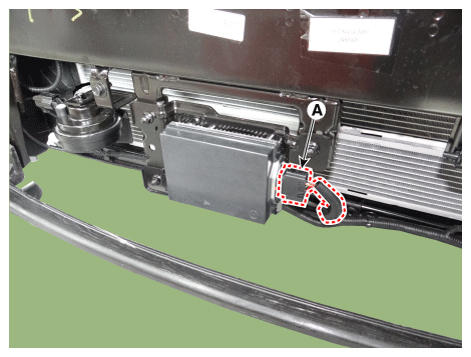

Disconnect the ASCC radar & unit connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

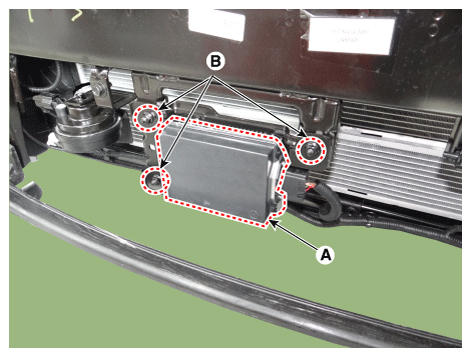

Remove the ASCC radar & ECU (A) after loosening the mounting nuts (B).

Courtesy of KIA MOTORS AMERICA, INC.
