Measuring Resistance

Disconnect the cruise control switch connector from the control switch.

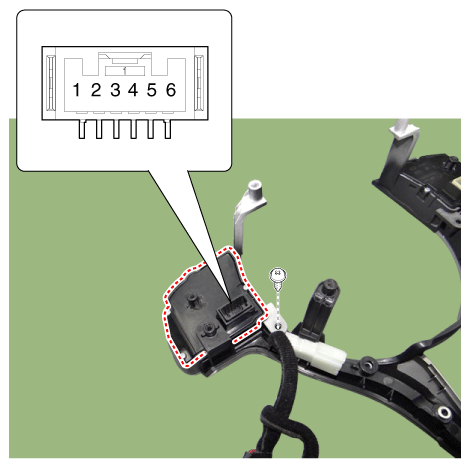

Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).

G12347008

Courtesy of KIA MOTORS AMERICA, INC.

Function switch	Connector terminal	Resistance (kΩ) [± 3%]
CANCEL	3 - 5	0.39
SET -	3 - 5	0.61
RES +	3 - 5	0.91
CRUISE	3 - 5	2.13
ASCC	3 - 5	3.63

If not within specification, replace switch.
