Components And Components Location: Components

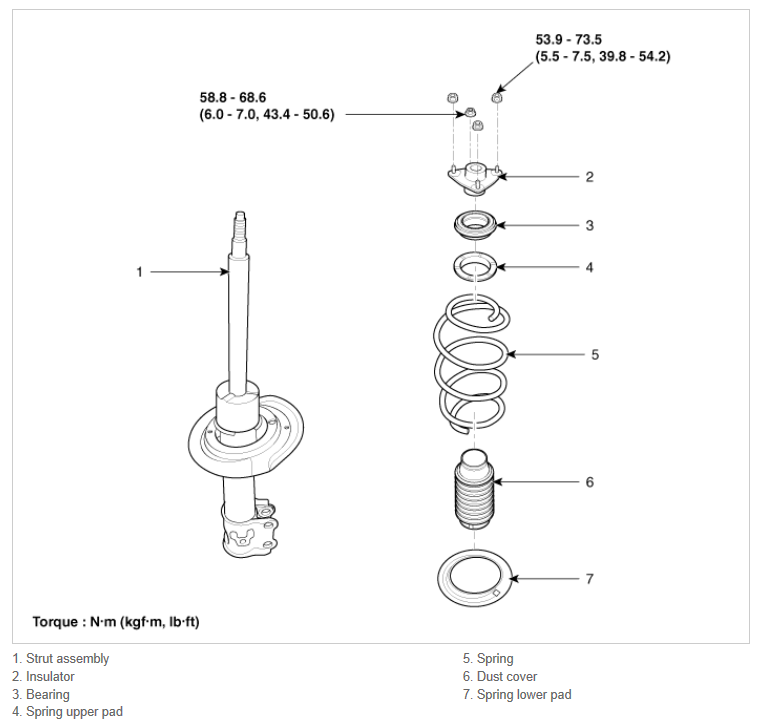

Fig 1: Front Strut Assembly Components Location With Torque Specification

G12349734

Courtesy of KIA MOTORS AMERICA, INC.
