Components And Components Location: Components

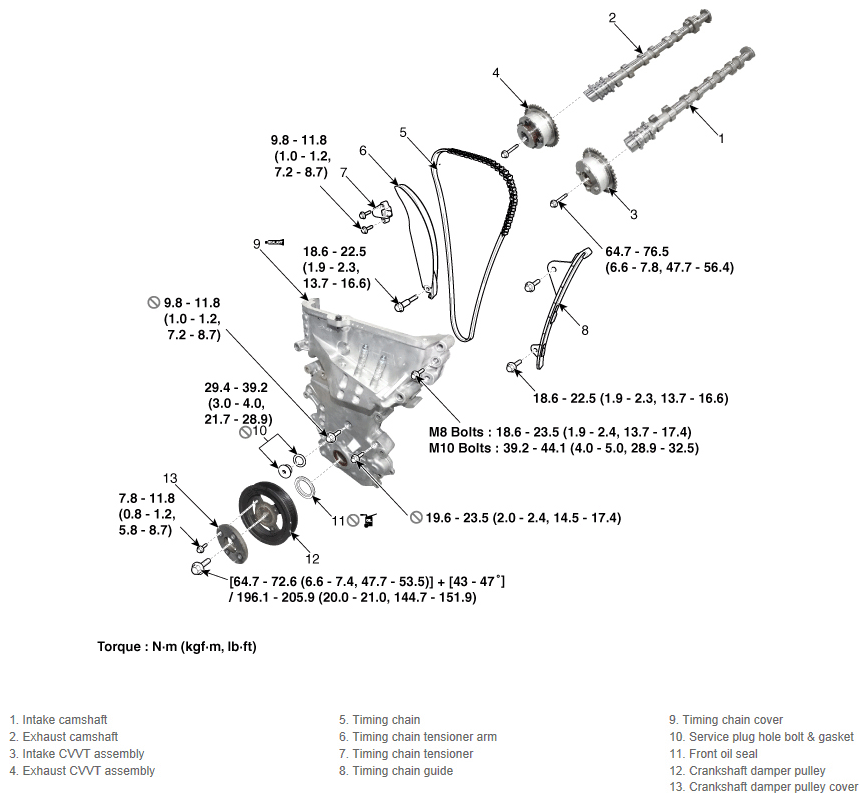

Fig 1: Timing System Components With Torque Specification

G12353048

Courtesy of KIA MOTORS AMERICA, INC.
