Components And Components Location: Components

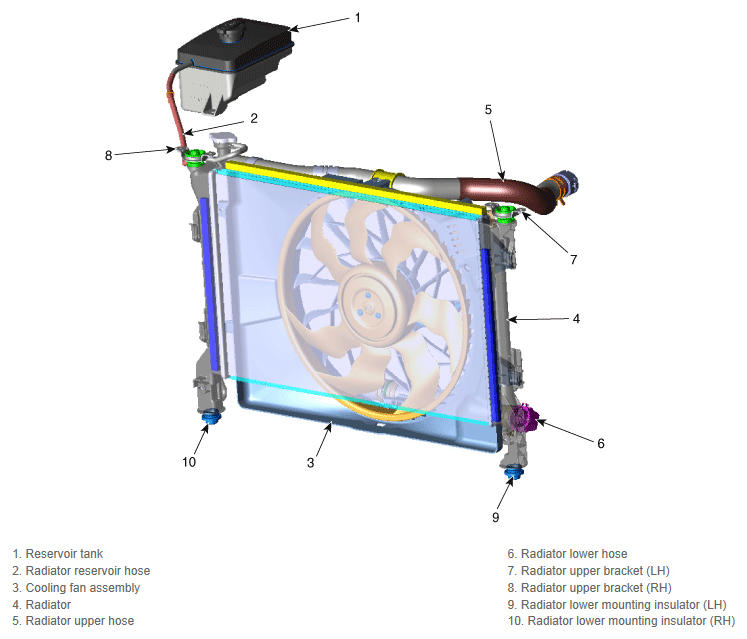

G12352679

Courtesy of KIA MOTORS AMERICA, INC.

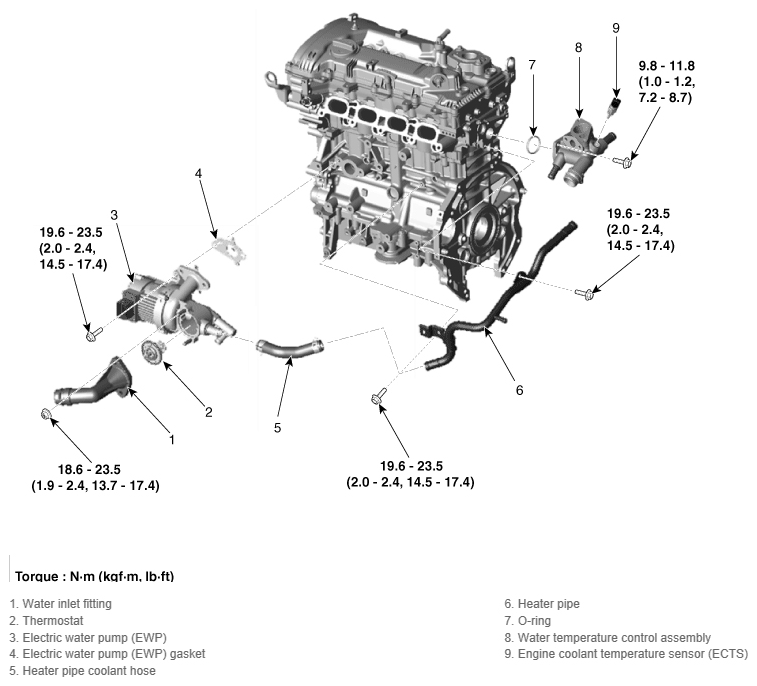

Fig 1: Cooling System Components With Torque Specification

G12352680

Courtesy of KIA MOTORS AMERICA, INC.
