Trunk Lock Module Inspection

  1. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

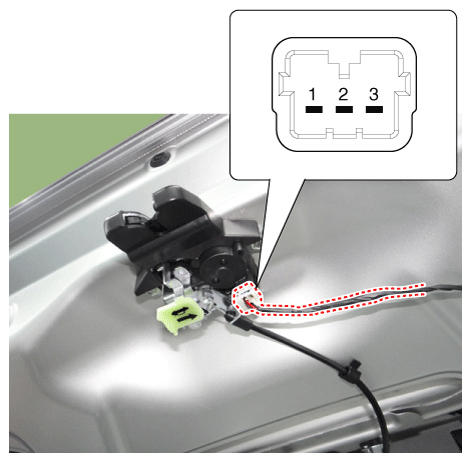

  2. Disconnect the connector from the actuator
    G12351686Courtesy of KIA MOTORS AMERICA, INC.
  3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
G12351687Courtesy of KIA MOTORS AMERICA, INC.
G12351688Courtesy of KIA MOTORS AMERICA, INC.
