Customer Tip: Accelerator Pedal Function/Description (PS496)
WARNING: This page is about the Optima LX 1.6T, which is a different variant/trim than selected.
Publication date: 2017-06-05Reference number: PS496
CUSTOMER TIP: ACCELERATOR PEDAL FUNCTION/DESCRIPTION
TECHNICAL SERVICE BULLETIN
Reference Number(s): PS496, Date of Issue:
June 5, 2017
| KIA: | All K900 (KH)s; All Cadenza (VG, YG)s; All Optima (JFa, JF, JF-HEV, JF-PHEV)s |
| GROUP: | Engine |
SERVICE INFORMATION

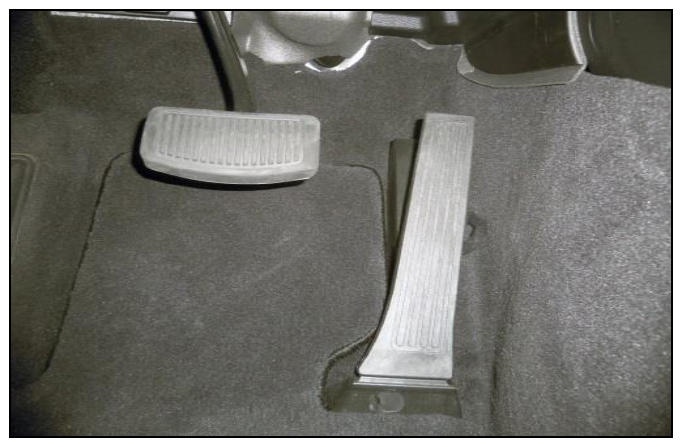

On all K900 (KH), Cadenza (VG, YG), and Optima (JF, JFa, JF-HEV, JF-PHEV) vehicles, the accelerator pedal features a small detent with a spring to provide increased resistance to help avoid unnecessary fuel consumption when applying full throttle. When the driver depresses the pedal beyond the resistance where the detent is felt (above 85% WOT), the pedal will easily reach WOT and kickdown shift will occur accordingly. For additional information, refer to the individual vehicle's Owner's Manual under section "Driving Your Vehicle" - Automatic Transmission (Drive).
