Repair Procedures: Inspection

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

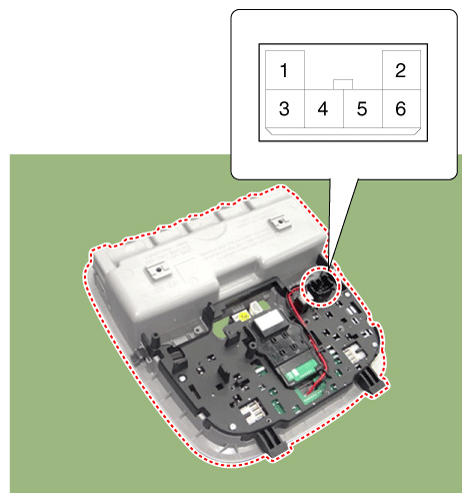

Fig 1: Overhead Console Lamp Assembly Connector Terminals
G12143391Courtesy of KIA MOTORS AMERICA, INC.

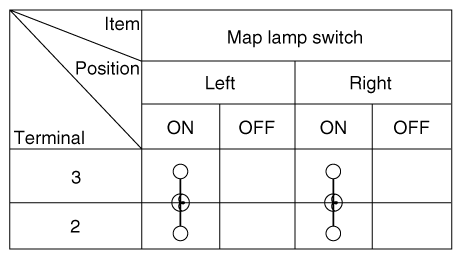

Fig 2: Overhead Console Lamp Assembly Connector Terminals Continuity Chart
G12143392Courtesy of KIA MOTORS AMERICA, INC.
