Repair Procedures

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly. (Refer to Lighting System - "HEADLAMPS ")

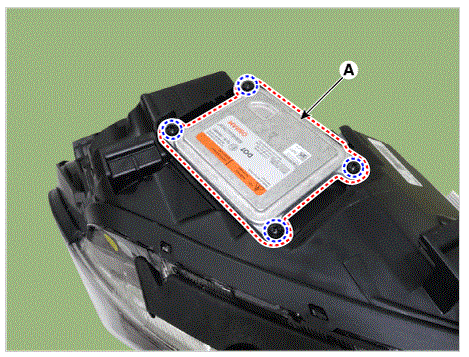

  2. Remove the ballast (A) by loosening the screws.
    G00582640Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Applying with excessive torque to loosen the screw, extra wear may occur on the housing screw boss.

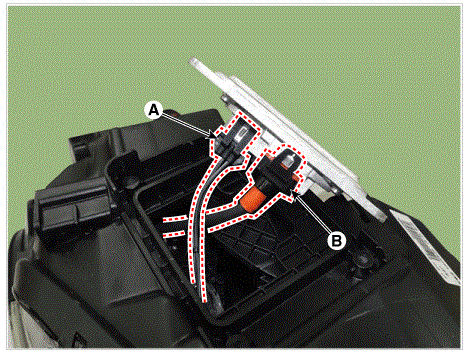

  3. Disconnect the main connector (A) and HID cable (B) from the ballast.
    G00582641Courtesy of KIA MOTORS AMERICA, INC.

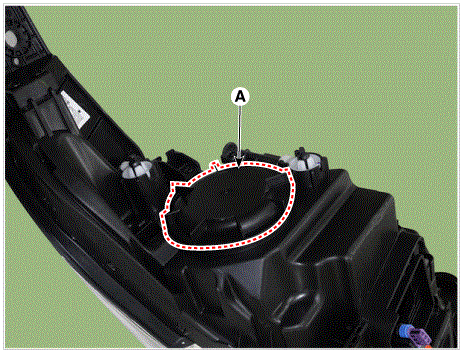

  4. Remove the dust cover (A) by rotating it in the direction of counterclockwise.
    G00582642Courtesy of KIA MOTORS AMERICA, INC.

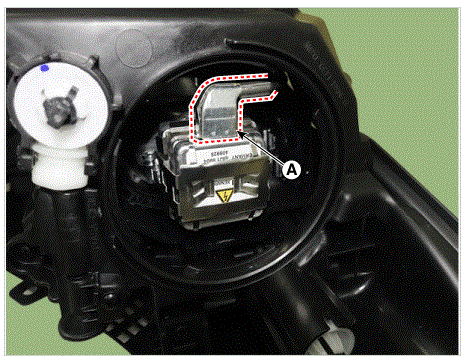

  5. Disconnect the bulb connector (A).
    G00582643Courtesy of KIA MOTORS AMERICA, INC.

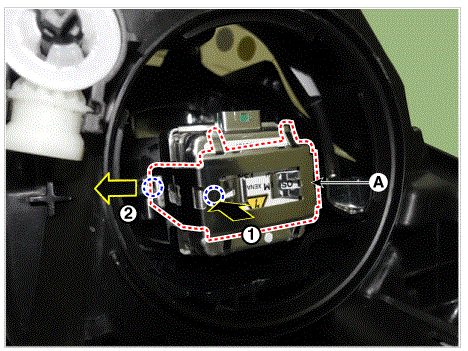

  6. Remove the bulb clip (A) by pushing it in the direction of arrow.
    G00582644Courtesy of KIA MOTORS AMERICA, INC.

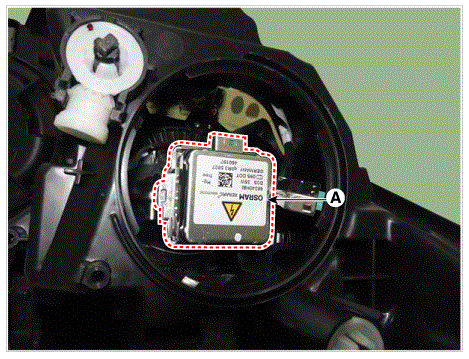

  7. Install the bulb (A) into the new headlamp sub assembly after removing it.
    G00582645Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be careful not to scratch the glass part of the bulb when removing or installing it.
    • If the scratch occurred on the bulb, replace it with a new one.

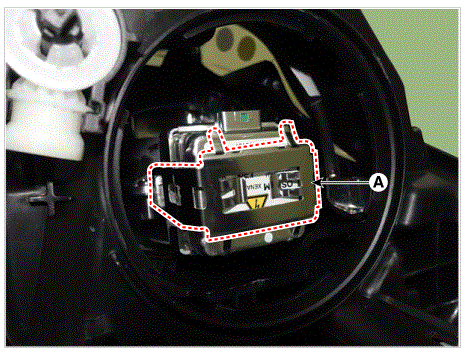

  8. Install the bulb clip (A).
    G00582646Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Incompletion of bulb clip installation, unstable lighting may occur during the driving.

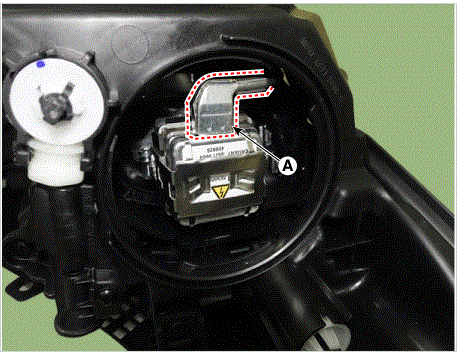

  9. Connect the bulb connector (A).
    G00582647Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Bad lighting may occur due to poor connection of connector.

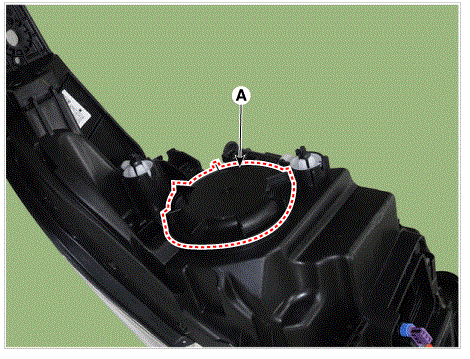

  10. Install the dust cover (A) by rotating it in the direction of clockwise.
    G00582648Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Poor watertight may occur due to poor installing of dust cover.

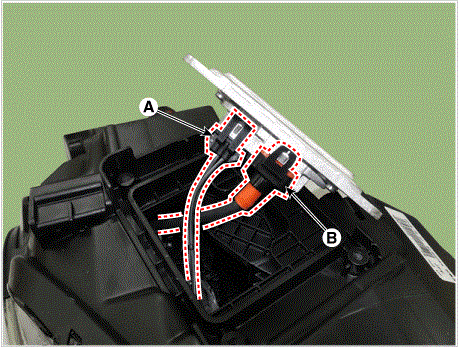

  11. Connect the main connector (A) and HID cable (B) from the ballast.
    G00582649Courtesy of KIA MOTORS AMERICA, INC.

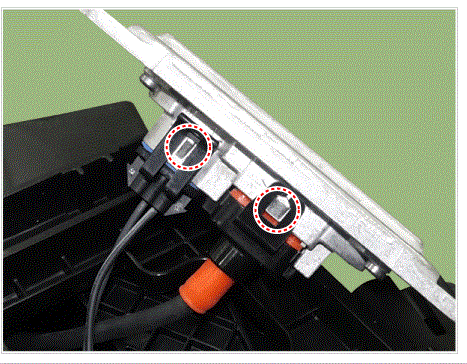

    NOTE: Check the connection state of hooks after connecting the connector and cable.
    G00582650Courtesy of KIA MOTORS AMERICA, INC.

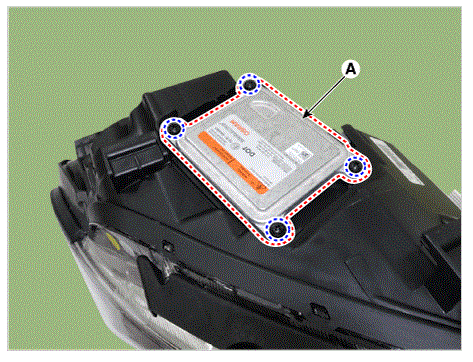

  12. Install the ballast (A) by tightening the screws.
    G00405761Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Applying with excessive torque to tighten the screw, extra wear may occur on the housing screw boss.
    • If excessive wear occurred on the housing screw boss, poor watertight may occur due to poor ballast installing.
  13. Install the headlamp assembly. (Refer to Lighting System - "HEADLAMPS ")
  14. Perform the headlamp aiming procedure. (Refer to Lighting System - "HEADLAMPS ")
