Repair Procedures: Inspection

  1. Connect the KDS/GDS to the vehicle's data link connector (DLC).
  2. Check any DTCs and if exist, repair according to the DTC guide.
  3. Check the power supply voltage provided to the fuel pressure sensor (FPS).

    Specification: 5V

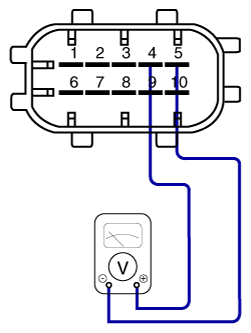

    Fig 1: Checking Power Supply Voltage Provided To Fuel Pressure Sensor
    G12142522Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the voltage provided to the fuel pressure sensor (FPS) at idle.

    Specification: 1.9 - 3.2 V

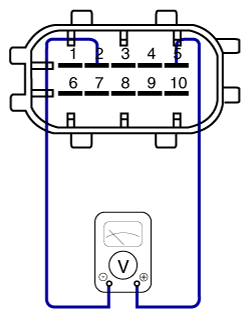

    Fig 2: Checking Voltage Provided To Fuel Pressure Sensor At Idle
    G12142523Courtesy of KIA MOTORS AMERICA, INC.
  5. Check the fuel pressure in the low fuel line.

    (Refer to Fuel Delivery System - "Fuel Pressure Test ")

    Items Specification
    start Max. 600 KPa (Max. 6.1 kgf/cm2 , Max. 87.0 psi)
    in operation 350 - 500 KPa (3.5 - 5.1 kgf/cm2 , 50.7 - 72.5 psi)
