Engine Control System - 1.6L (Except HEV)
>>
Fuel Pressure Control Valve (FPCV)
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform

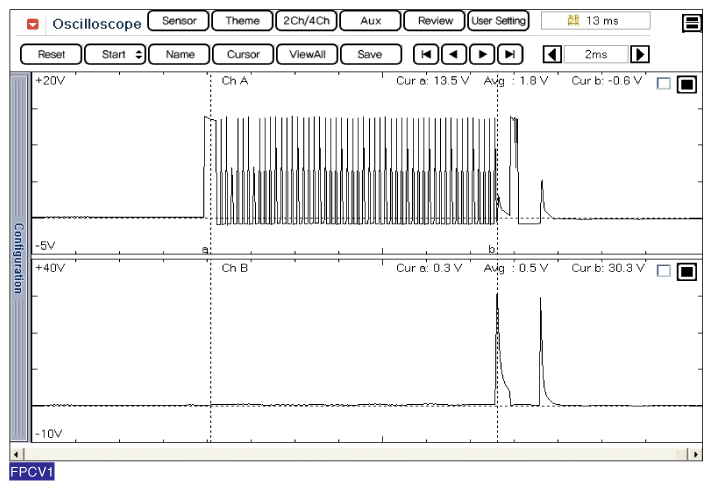

Fig 1: Scantool Display - Signal Waveform Of Fuel Pressure Control Valve
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
