Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the intercooler outlet hose (A).

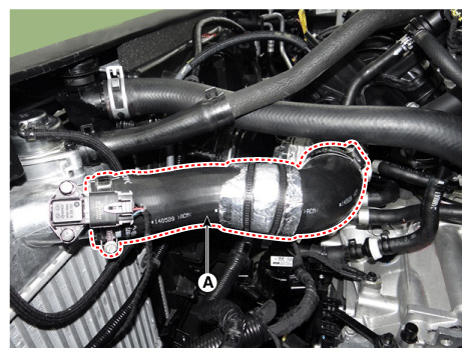

    Fig 1: Locating Intercooler Outlet Hose
    G12140186Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the ETC module connector (A) and vapor hose (B),
  5. Remove the ETC module mounting bolts (C).

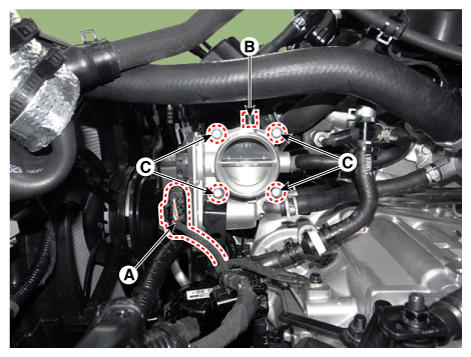

    Fig 2: Locating ETC Module Connector, Vapor Hose And ETC Module Mounting Bolts
    G12140187Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the ETC module (A) after disconnect the coolant hoses (B).

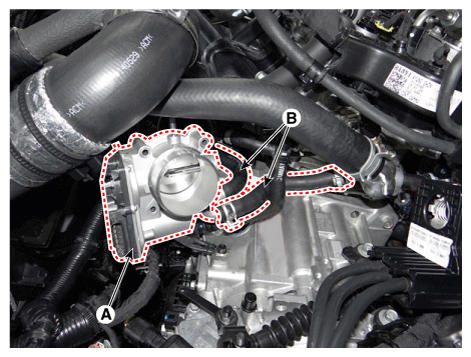

    Fig 3: Locating ETC Module And Coolant Hoses
    G12140188Courtesy of KIA MOTORS AMERICA, INC.
