Repair Procedures: Removal

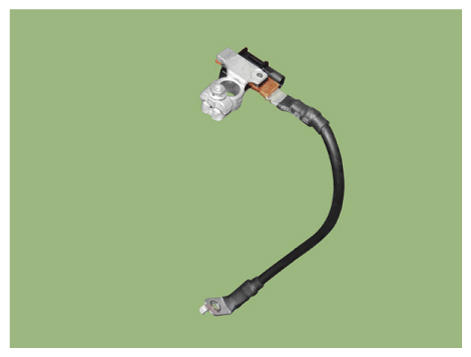

Fig 1: Battery Sensor Connector

G12140036

Courtesy of KIA MOTORS AMERICA, INC.

Turn the ignition switch OFF.
Disconnect the battery negative (-) terminal (A).
Battery negative (-) terminal tightening nut :

4.0 - 6.0 N.m (0.4 - 0.6 kgf.m, 3.0 - 4.4 lb.ft)

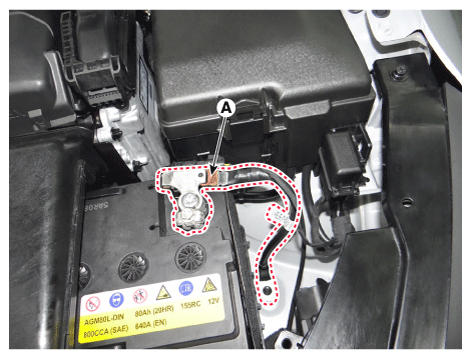

Fig 2: Locating Battery Negative (-) Terminal
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the battery sensor connector (A).
Remove the battery sensor by loosening the mounting bolt (B).
Battery sensor cable flange mounting bolt (Chassis ground) :

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)

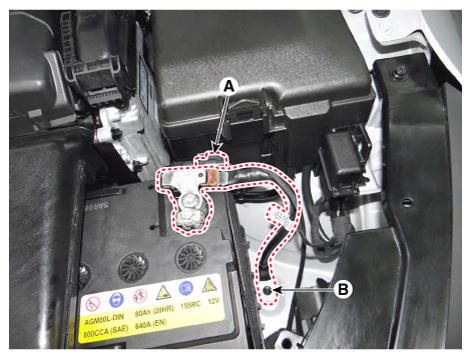

Fig 3: Locating Battery Sensor Connector And Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
