Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

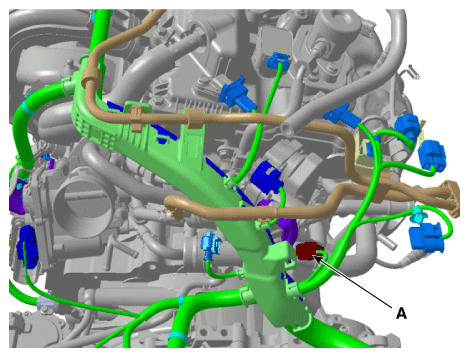

  3. Disconnect the engine coolant temperature sensor connector (A) and then remove the sensor.
    Fig 1: Locating ECTS Connector
    G12308929Courtesy of KIA MOTORS AMERICA, INC.
  4. Supplement the engine coolant.

    (Refer to Engine Mechanical System - "COOLANT ")
