Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  3. Disconnect the crankshaft position sensor connector (A) and remove the sensor (B) after removing the installation bolt.

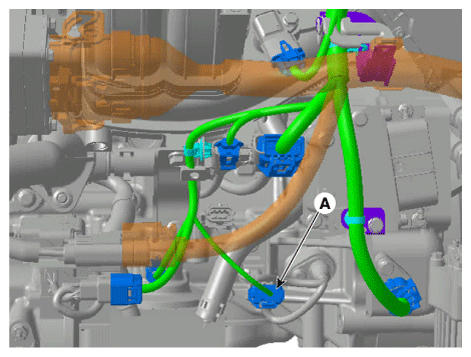

Fig 1: Locating CKPS Connector
G12308933Courtesy of KIA MOTORS AMERICA, INC.

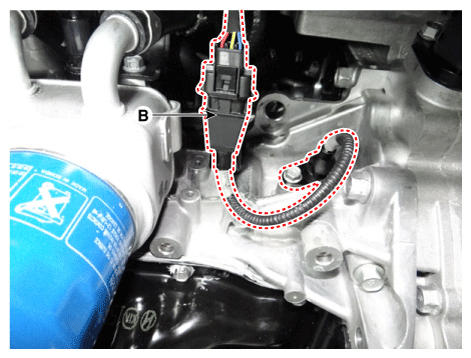

Fig 2: Locating CKPS Connector With Bolt
G12308934Courtesy of KIA MOTORS AMERICA, INC.
