Repair Procedures: Installation

  1. Install in the reverse order of removal.
NOTE:
  • Check that the shift lever and manual control lever are placed in the "N" position.

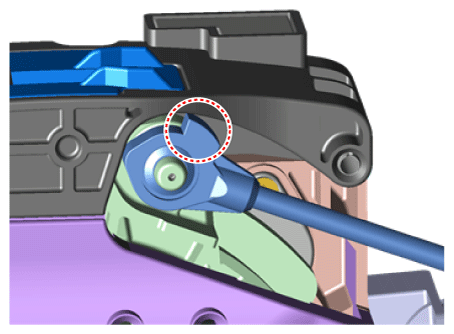

  • Install the shift cable after checking the direction of projection to prevent incorrect assembly.
    Fig 1: Installing Shift Cable
    G12148309Courtesy of KIA MOTORS AMERICA, INC.

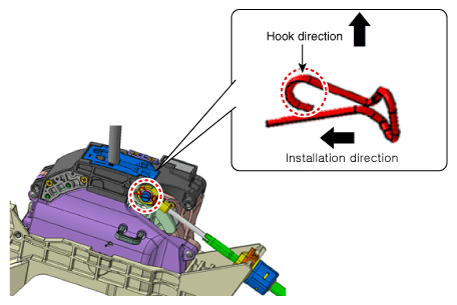

  • Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
Fig 2: Installing Snap Pin With Hook Facing Upward
G12148310Courtesy of KIA MOTORS AMERICA, INC.
