Home >> Kia >> 2017 >> Optima EX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.4L (Except HEV) >> Shift Lever >> Components and Components Location >> Components

Components and Components Location: Components

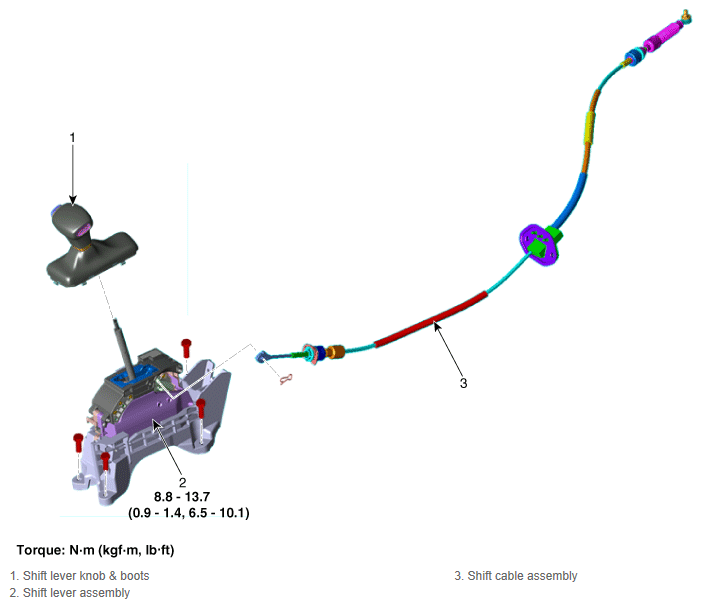

Fig 1: Shift Lever Components With Torque Specification

G12148304

Courtesy of KIA MOTORS AMERICA, INC.
