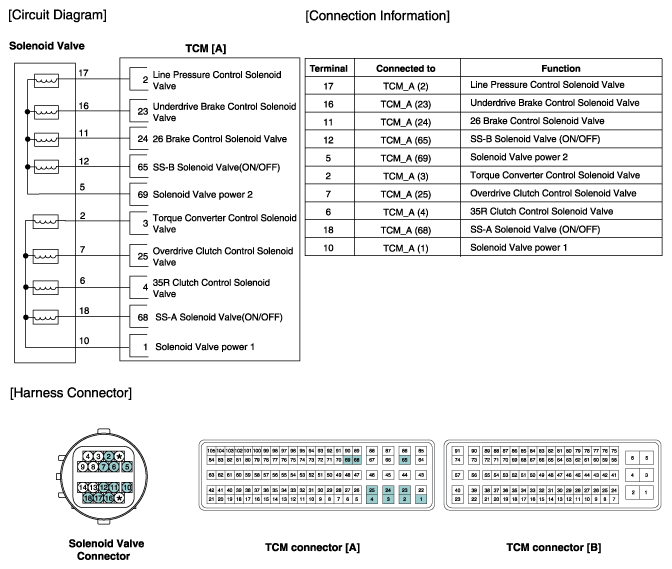

Home >> Kia >> 2017 >> Optima EX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.4L (Except HEV) >> Line Pressure Control Solenoid Valve >> Schematic Diagrams >> Circuit Diagram
