Home >> Kia >> 2017 >> Optima EX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.4L (Except HEV) >> Components and Components Location >> Components

Components and Components Location: Components

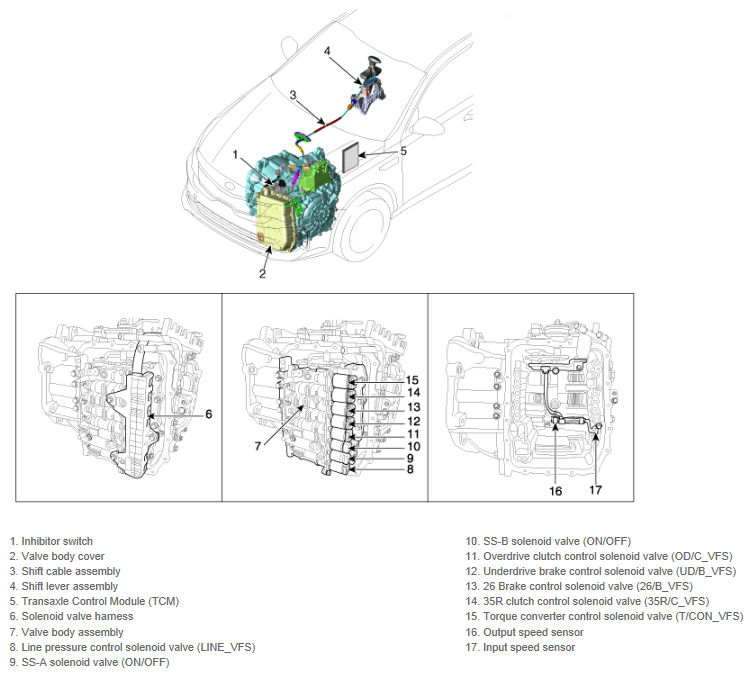

Fig 1: Automatic Transaxle Control System Components

G12148159

Courtesy of KIA MOTORS AMERICA, INC.
