VEHICLE EMISSION CONTROL INFORMATION LABEL REPLACEMENT (SC152)

SERVICE CAMPAIGN BULLETIN

Reference Number(s): SC152, Date of Issue: September 6, 2018

KIA:	2018 Stinger (CK) 2.0T; 2015-2016 Optima (TF HEV); 2017 Optima (JF HEV)
GROUP:	Emissions Campaign

SERVICE INFORMATION

This bulletin provides the procedure to affix an updated Vehicle Emissions Control Information (VECI) label on some 2018MY Stinger (CK) vehicles, equipped with Theta 2.0T engines, all 2015-2016MY Optima Hybrid (TF HEV), and some 2017MY Optima Hybrid (JF HEV) vehicles. An incorrect VECI label was affixed on these vehicles. If the VECI label is incorrect, the vehicle may fail the emission testing, even if it meets applicable emissions standards.

Follow the procedure outlined in this bulletin to inspect and/or affix the correct VECI label. Before conducting the procedure, verify that the vehicle is included in the list of affected VINs.

Please be aware that customers of the affected vehicles will be receiving the corrected VECI labels with the Campaign letter so they can apply them to their own vehicle; however customers will also be informed that they can request to have their dealer affix them if preferred.

NOTE: To assure complete customer satisfaction, always remember to refer to WebDCS Warranty Coverage (validation) Inquiry Screen (Service → Warranty Coverage → Warranty Coverage Inquiry) for a list of any additional campaigns that may need to be performed on the vehicle before returning it to the customer.

INSPECTION PROCEDURE

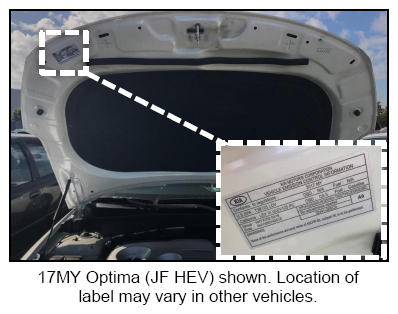

Open the hood and locate the Vehicle Emissions Control Information (VECI) label.
Inspect the label and ensure the new VECI label has been applied.

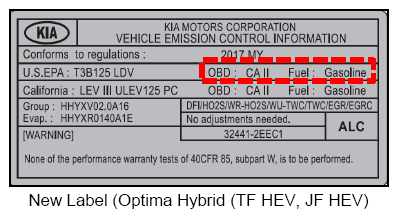

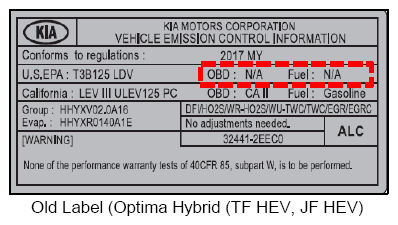

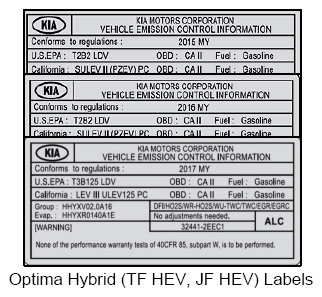

- For Optima Hybrid (TF HEV, JF HEV) vehicles, see photos to the right for old and new labels.

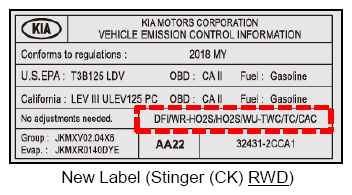

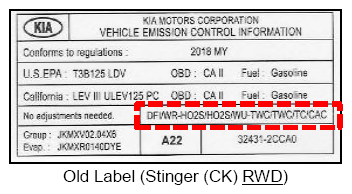

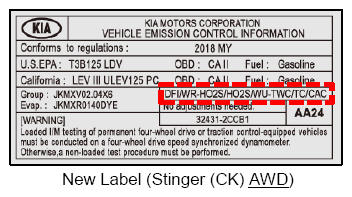

- For Stinger (CK) vehicles, see photos on page 3 for old and new labels.
If a new VECI label has not been applied, proceed to the Label Installation procedure below.

If a new VECI label has been applied, no further action is required.

INSTALLATION PROCEDURE

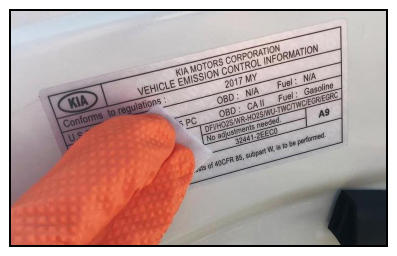

With the hood open, clean the surface of the incorrect VECI label with an alcohol wipe or an equivalent cleaner.
NOTE: Failure to clean the surface will prevent the new label from adhering properly.

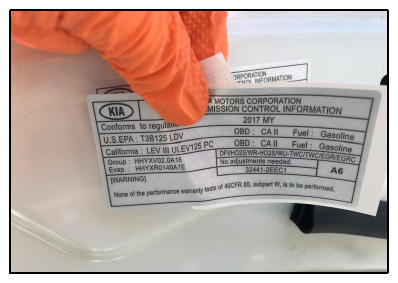

Carefully affix the new provided VECI label over the old VECI label, ensuring complete coverage of the old label with the new.

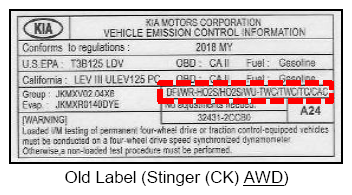

NOTE: For Stinger (CK) vehicles, note that the RWD and AWD models require different labels.

AFFECTED VEHICLE RANGE

Model	Production Date Range
Stinger (CK)	September 29, 2017 through November 20, 2017
Optima Hybrid (TF HEV)	July 24, 2014 through July 22, 2015
Optima Hybrid (JF HEV)	June 27, 2016 through June 12, 2017

REQUIRED PART

Model	Part Name	Part Number
18MY CK (RWD)	Vehicle Emissions Control Information Label	32431 2CCA1
18MY CK (AWD)		32431 2CCB1
15MY TF HEV		32459 2G114
16MY TF HEV		32459 2G115
17MY JF HEV		32441 2EEC1

WARRANTY INFORMATION

N Code: N99 C Code: C99

Model	Claim Type	Causal P/N	Qty.	Repair Description	Labor Op Code	Op Time	Replacement P/N	Qty.
2018MY CK RWD	R	32431 2CCA0	0	(SC152) VECI Label Inspection Only	170125R1	0.1 M/H	N/A	N/A
2018MY CK AWD		32431 2CCA0			170125R1
2015MY TF HEV		32459 2G114			170109R1
2016MY TF HEV		32459 2G115
2017MY JF HEV		32441 2EEC1
2018MY CK RWD	R	32431 2CCA0	1	(SC152) VECI Label Inspection & Affix New Label	170125R0	0.2 M/H	N/A	N/A
2018MY CK AWD		32431 2CCA0			170125R0
2015MY TF HEV		32459 2G114			170109R0
2016MY TF HEV		32459 2G115
2017MY JF HEV		32441 2EEC1

NOTE: VIN inquiry data for this repair is provided for tracking purposes only. Kia retailers should reference SC152 when accessing the WebDCS system.
