Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the glove box housing.

    (Refer to Body - "CRASH PAD (EXCEPT HEV) ")

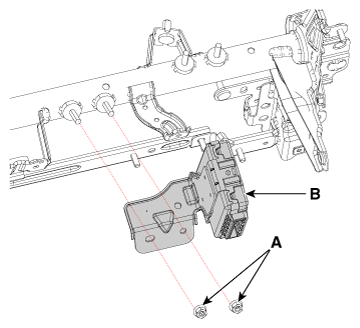

  3. Remove the ASCC ECU (B) after disconnecting the connector and nuts (A).
Fig 1: Locating ASCC ECU And Nuts
G12139962Courtesy of KIA MOTORS AMERICA, INC.
