Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Switch "OFF" ignition and disconnect the negative (-) battery cable.
Remove the crash pad lower panel.
(Refer to Body (Interior and Exterior) - "CRASH PAD ")
Remove the knee airbag.
(Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

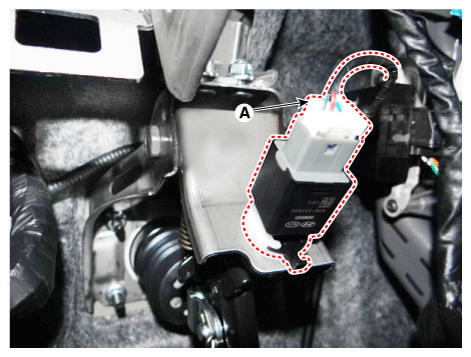

Disconnect the brake switch connector (A).

Fig 1: Locating Brake Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

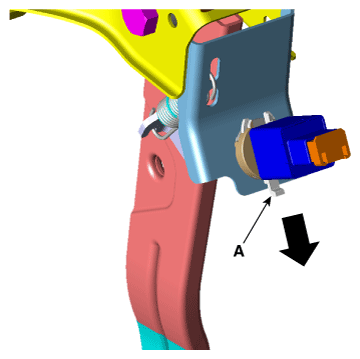

Pull the locking plate (A) as indicated by the arrow.

Fig 2: Pulling Locking Plate
Courtesy of KIA MOTORS AMERICA, INC.

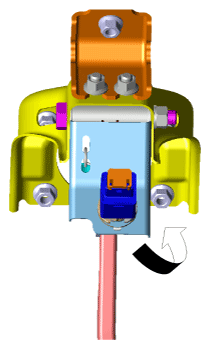

Turn brake switch 45° counterclockwise and remove it.

Fig 3: Turning Brake Switch 45° Counterclockwise
Courtesy of KIA MOTORS AMERICA, INC.

Inspect the removed stop lamp switch according to the below procedures.

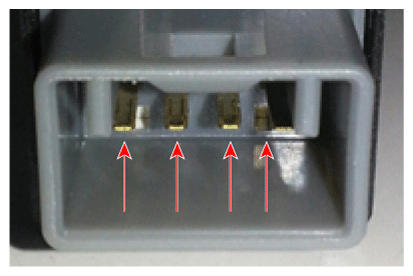

Confirm proper connection with terminal part
- A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
Fig 4: Inspecting Removed Stop Lamp Switch For Normal Connection With Terminal Part
Courtesy of KIA MOTORS AMERICA, INC.

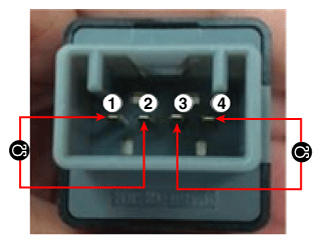

Perform the inspection of parts resistance.

Fig 5: Inspecting Removed Stop Lamp Switch Parts Resistance

Courtesy of KIA MOTORS AMERICA, INC.

Resistance (Ω)	3-4	1-2
Non rod protruded (switch turned OFF)	Infinite	0
Rod protruded (switch turned On)	0	0
