Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.
Using the SST (09581-11000, 09580-0U000), install the brake caliper assembly.
[NON EPB]

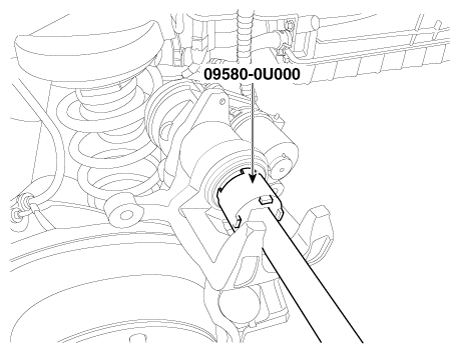

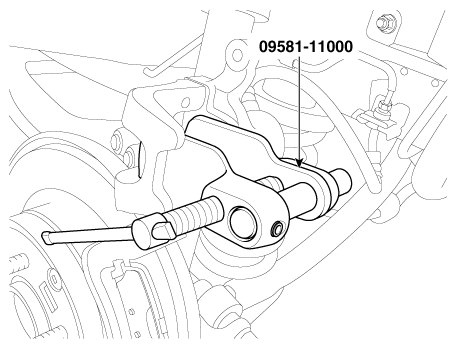

Fig 1: Installing Brake Caliper Assembly Using SST (09581-11000, 09580-0U000) - NON EPB
Courtesy of KIA MOTORS AMERICA, INC.

[EPB]

Fig 2: Installing Brake Caliper Assembly Using SST (09581-11000, 09580-0U000) - EPB
Courtesy of KIA MOTORS AMERICA, INC.
After installation, bleed the brake system.
(Refer to Brake System - "Repair Procedures ")
