Repair Procedures: Removal

Turn ignition switch OFF and disconnect the negative (-) battery terminal.
Remove the engine cover.

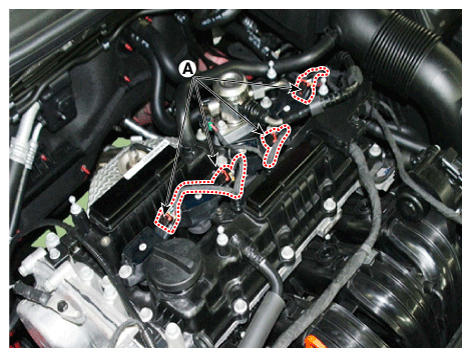

Disconnect the ignition coil connector (A).

Fig 1: Disconnecting Ignition Coil Connector
Courtesy of KIA MOTORS AMERICA, INC.

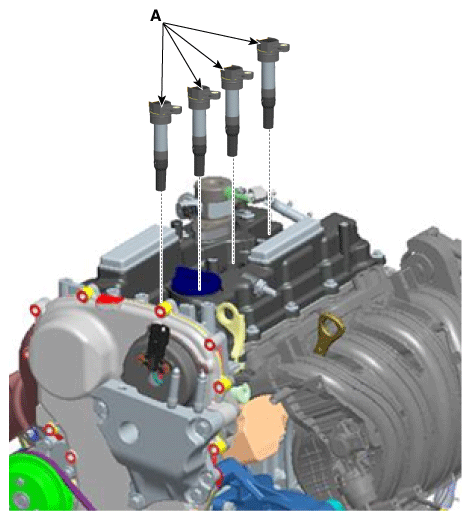

Remove the ignition coil (A).

Fig 2: Removing Ignition Coil

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
